Professional
Stage Moving Head Light
Manufacturer & Supplier
Darktone — Precision-Engineered Stage Lighting • Factory Direct • Since 2010
Get a Quote
Define Tone in Dark
Moving Head Light
Professional
RELIABLE & HIGH-PERFORMANCE
MOVING HEAD LIGHT
Darktone manufactures heavy-duty moving head lights for intense live events and permanent installations. Each unit passes aging tests, optical inspection and precision calibration before shipment. Our in-house team supports custom beam angles, color profiles and OEM branding. Since 2010, we’ve delivered reliable stage lighting solutions to partners in 50+ countries for music festivals, live shows and theatres.
Our moving head lights feature imported optical lenses with 540° pan and 270° tilt. Built-in multi-color wheel, gobos and rotating prisms create diverse beam, pattern and rainbow effects. Each fixture passes full aging and optical calibration before delivery.
They support DMX512 & RDM bidirectional control, with voice control, auto-run and master-slave optional. IP55 / IP65 ratings available for indoor & outdoor use.
- 120W–600WMultiple power variants for theatre, live shows, clubs and architectural lighting
- 540°×270°Pan/TiltSmooth pan/tilt with 16-bit fine positioning, motorized electronic focus
- Rich Visual Effects13–14 colors, 15–19 gobos, rotatable prisms, adjustable strobe & 0–100% dimming
- Flexible ControlDMX512, RDM, voice activation, auto-run & master-slave modes
moving head lights products
- Product Screening
- Scenarios
- Touring Performances
- Bars
- Concerts
- Music Festivals
- Large Venues
- Architectural Lighting
- Parties
- Themed Towns
- Light and Water Shows
- Theme Parks
- Banquet Halls
- Live Streaming Studios
- TV Stations
- Science Museums
- Science Museums
- Light Source Power
- 1W
- 2W
- 3W
- 4W
- 5W
- 6W
- 8W
- 10W
- 12W
- 15W
- 20W
- 25W
- 30W
- 40W
- 50W
- 60W
- 80W
- 100W
- 120W
- 150W
- 200W
- 300W
- Rated Power
- 96W
- 120W
- 210W
- 250W
- 310W
- 370W
- 450W
- 670W
- 810W
- 910W
- 1060W
- 1100W
- 1200W
- 1500W
- 2600W
- 3700W
- 150W
- IP Rating
- IP54
- IP55
- IP65
- Weight
- 5kg
- 5.5kg
- 6.5kg
- 7kg
- 8.5kg
- 14.5kg
- 16.5kg
- 18.5kg
- 26kg
- 36kg
- 73kg
- 123kg
- 200kg
- Housing Color
- Black
- Silver
- White
- Dark Gray
7 results
ViewShowcase
Waterproof LED 5‑Head Tornado, 5×120W RGB, 3.5°‑45° zoom, 60° Pan /220° Tilt(16‑bit). DMX512/RDM, outdoor stage use
1500W IP65 Outdoor Moving‑Head Framing Light: CMY+CTO, 5°‑50° zoom, 16‑bit pan/tilt, DMX512/RDM, smart cooling.
450W LED 3-in-1 Moving Head Light, zoomable beam, rich effects, smooth dimming, multi-control, for stage use.
150W 8 prism moving head light, rich patterns and colors, multi control modes, wide rotation angle, ideal for stage events.
Sealed die‑cast aluminum, DMX512 16/20‑channel, electronic focus, color/gobo/prism effects. Stage, club, outdoor.
DMX512 supported, 20/24‑channel, electronic focus, rich color, gobo & prism effects. For stage, club and outdoor use.

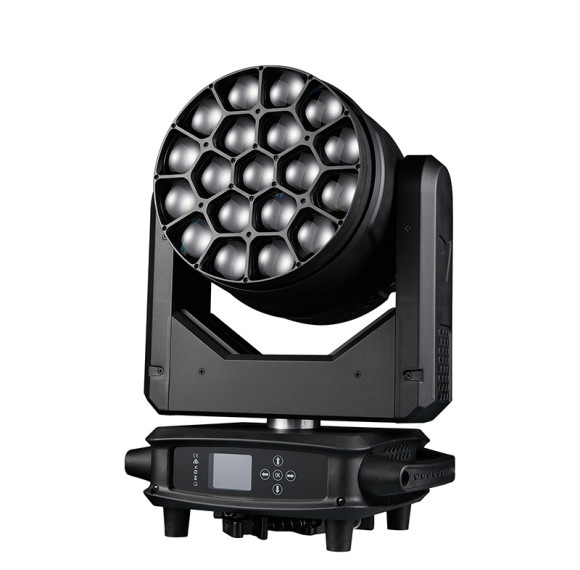

19×40W Bee‑Eye Moving Head, zoomable, sound‑activated, multi‑DMX channels for stage events.
TECHNICAL SPECIFICATIONS
& RELIABLE PERFORMANCE
FOR LIVE SHOW MOVING HEAD LIGHTS
Premium Light Source
Multiple power options: OSRAM lamp & 300W white laser, high brightness, long lifespan, low light decay for extended live shows.
- 230W / 350W / 380W / 300W laser optional
- Laser source lifespan up to 30,000 hours
- High luminous flux & strong long-distance illumination
Imported Optics & Beam Control
Adopts imported optics with motorized focus. Precise beam shaping & adjustable angle for versatile stage visuals.
- Beam angle adjustable: 0.72°~3°
- Motorized electronic focus
- 0–100% linear dimming, 1–25Hz adjustable strobe
Rich Color & Gobo Effects
Built-in color wheel and gobo wheel to deliver abundant patterns and color transitions. Supports bidirectional rotation and rainbow effect.
- Color wheel: 13/14 colors + white light, rainbow effect
- Gobo wheel: 15~19 fixed pattern slices
- Custom gobos available on request
Dual-Way DMX & RDM Control
DMX512 & RDM bidirectional control, remote address reset, multi working modes.
- DMX512 & RDM two-way data transmission
- Sound Active / Auto / Master-Slave modes
- 1.7-inch touch LED display for local setup
Multi-Grade Waterproof Housing
Die-cast rugged shell with fireproof & anti-fall structure. Multiple IP ratings available for indoor, semi-outdoor and outdoor events.
- IP55 / IP66 protection optional
- Sunscreen, fireproof and anti-fall casing
- Reinforced shell for touring transport
Intelligent Monitoring & Full Inspection
Smart system records runtime, temperature and firmware info. Every fixture passes complete functional testing before packing.
- Real-time temperature & working hour display
- Record channel number and software version
- Full function test before shipment
MOVING HEAD LIGHT
Parameter
Quick Reference
| Parameter | Indoor Series | Outdoor Waterproof OSRAM Series |
300W Outdoor Laser Series |
|---|---|---|---|
| Light Source | 120W – 480W LED | OSRAM SIRIUS HRI | 300W White Laser |
| Pan / Tilt | 540° / 270° | 540° / 270° | 540° / 270° |
| IP Rating | IP20 | IP66 | IP66 |
| Control | DMX512, Sound, Auto, Master-Slave |
DMX512, RDM | DMX512, RDM |
| DMX Channel | 16CH | 16/20CH | 15CH |
| Voltage | AC100–240V 50/60Hz | AC100–240V 50/60Hz | AC100–240V 50/60Hz |
| Beam Angle | — | 1.5° | 0.72° |
| Dimming | 0–100% Linear | 0–100% Linear | 0–100% Linear |
| Housing | Plastic / Alloy | Die-cast Aluminum | Die-cast Aluminum |
Complete Moving Head Light
ProductRange
Click a category to see full product details on our website.
150W, IP20
Beam Moving Head LightBeam moving head with DMX512 & sound control. 540° pan, 270° tilt. Great for live shows & indoor events.
600-650W, IP55/IP66
Beam Moving HeadOsram lamp, DMX512 control, 1.9°–3° beam angle. Ideal for festivals and outdoor shows.
1500W, IP65
Moving Profile Light
CMY+CTO mix, 4-blade cutter, 5°–50° zoom, DMX512 & RDM. For outdoor architecture & big events.
625W, Waterproof
LED 5-Head Tornado
5×120W RGB+LY LED, 3.5°–45° zoom, DMX512 & RDM. For outdoor stage & festivals.
Manufacturing Excellence
In-House Moving Head Light Production from End to End
Unlike many Moving Head Light suppliers who outsource, Darktone controls every step in our own smart factory.
Precision Optical Engineering
Our optical workshop delivers high-precision lens tuning, beam shaping and moving head optical calibration.
- Osram light source performance testing
- Beam optical path alignment & focusing
- Precision beam uniformity calibration

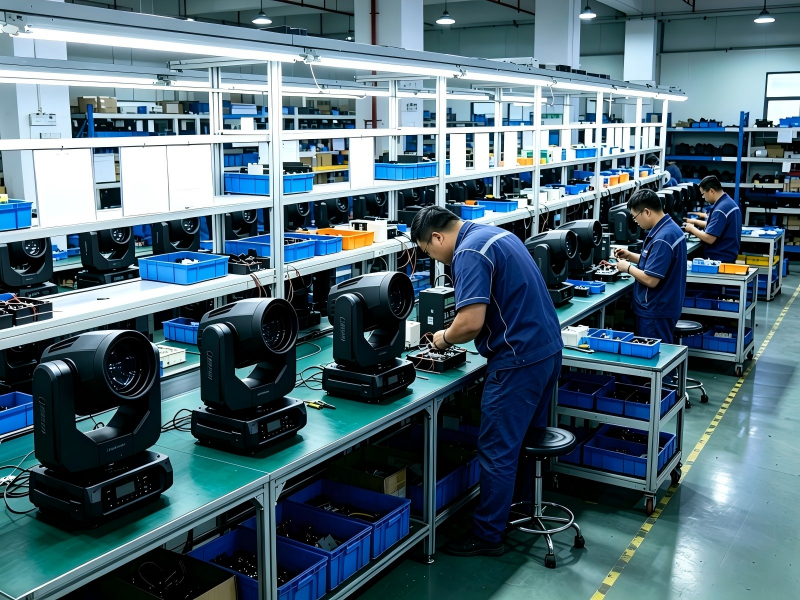

Production & Assembly
SMT production lines, precision CNC machining and manual assembly for die-cast aluminum housings, optical assemblies and circuit boards.
- Die-cast aluminum housing fabrication
- IP-rated sealing & waterproof treatment
- SMT PCB assembly
Seven-Layer QC：
Incoming inspection → in-process check → 24h aging → optical calibration → waterproof test → functionality test → final packing.
Custom Moving Head Light Solutions
Tailored for
Every Business Model
As a factory-direct Moving Head Light manufacturer, Darktone provides flexible partnership models.
| 01 | OEM/ODM for Lighting Brands | Full-cycle OEM: custom PCB, firmware, housing, branding. Low MOQ. |
| 02 | Private Label /White Label | Sell under your own brand. NDA protected, direct shipping. |
| 03 | System Integration Solutions | DMX512, RDM: full documentation and remote commissioning. |
| 04 | Distributor / Wholesale Program | Exclusive territory, tiered pricing, stock support, joint marketing. |
| 05 | Rental Fleet Solutions | Flight-case ready, modular maintenance, IP65 outdoor, spare parts support. |
| 06 | Custom Project Development | Bespoke systems for landmarks, themed attractions, permanent installs. |
Global Certifications
& Industry Compliance
Moving Head LIGHTS PRODUCT KNOWLEDGE
Practical resources for choosing, specifying and deploying professional Moving Head Light systems.
FIXTURE TYPE
Beam / Spot / Profile Moving Head Comparison
Learn differences between beam, spot and profile fixtures for shows.
Compare fixture types
ENVIRONMENT
IP Ratings Explained for Outdoor Moving Head Lights
Select proper IP grade for indoor, semi-outdoor and outdoor projects.
Check IP guide
SOURCING
OEM/ODM Moving Head Sourcing Guide for Brands
Check specs, housing, certification and lead time before sampling.
Frequently Asked Questions
About Moving Head Light
What IP rating moving head lights do I need for outdoor events?
IP65 is recommended for permanent outdoor installations. IP54 suits temporary outdoor shows. Indoor fixtures carry no waterproof rating and cannot be exposed to rain.
What is the difference between Beam, Spot and Profile moving heads?
Beam creates sharp narrow beams; Spot outputs soft gobos and colors; Profile uses shutters to cut and shape light for architectural projection.
Can moving heads run with DMX512 and RDM control?
Most of our professional moving heads support DMX512 for lighting programming and RDM for remote device status checking.
What maintenance is required for moving head lights?
Regularly clean dust on filters and lens, check fan operation and cable connections, and perform aging tests before big events.
