- Comply with official and international laser standards with tedious approval formalities
- Low beam divergence for over 300m projection, round-the-clock stable operation
- Poor rigging conditions， Dense overhead trusses restrict installation space
- Compatible with mainstream lighting consoles and venue central control with complicated linkage debugging
Define Tone in Dark
Large Venues Laser
Solutions
Home / Large Venues Laser Solutions
for Large Venues
Reliable Laser Solutions
From 80k-seat stadiums to major international exhibition halls, we offer precisely controlled, remotely operable, durable laser solutions to deliver safe, impressive, incident-free large events.
The Unique Challenges
of Large Venues
Unlike music festivals or small theaters, large venues impose higher requirements on laser systems:
"Lasers fail to cut through haze for back audiences at Olympic New Year event."
— Technical Director, Municipal TV Station
DarkTone Technical Delivery System for Large Venues
We provide full-cycle solutions from design to long-term maintenance for permanent and semi-permanent large venues.
High-Power Long-Range Beam System
40–300W power, clear 800m projection; 50kpps scanner for fine patterns
Pangolin Pro Software: Built-in Venue Mode automatically optimizes beam intensity
Ultra-narrow beam divergence ≤1.0 mrad for sharp long-range beams
Precise Safety Control
- Dynamic Safety Zoning
- Import venue CAD drawings to auto mark laser restricted areas including VIP zones, entrances and walkways
- ulti-level E-Stop Protection
- 0.1s laser cutoff via console, dual physical E-Stop buttons at stage & control room
- Complete Compliance Documents
- IEC 60825-1, FDA, CE, FCC certificates, equipment credentials & operation manuals
DeepSystem Integration
Seamlessly integrate with existing lighting systems
01
- Supports Art-Net, sACN and DMX512
02
- Equipped with RDM remote device management
03
- Crestron & KNX interfaces supported
04
- Timecode sync with MA2/Nexus, Avolites Titan, Hog 4
05
- Pre-built templates for sports, awards & New Year shows
Scan QR code to access scene show templates
Long-term Maintenance & Upgrades
Modular design
Replaceable core parts to cut long-term costs
24h remote support
Diagnostics, software updates & bug fixes
Annual inspections
Regular calibration & cleaning under maintenance contracts
Core Hardware
TourLite Arena Edition
Features | Venue Benefits |
|---|---|
| Optional 60W high power | Beam cuts smoke/dust, fits 80k-seat stadiums |
| Beam divergence ≤1.0 mrad | Spot ＜30cm at 300m, distortion-free graphics |
| IP54 indoor / IP65 waterproof optional | Fits diverse venue conditions |
| RDM supported | Remote status check & batch setup |
| Silent cooling system | Noise ≤45dB, TV live broadcast ready |
Proven
on the
large venues
large venues

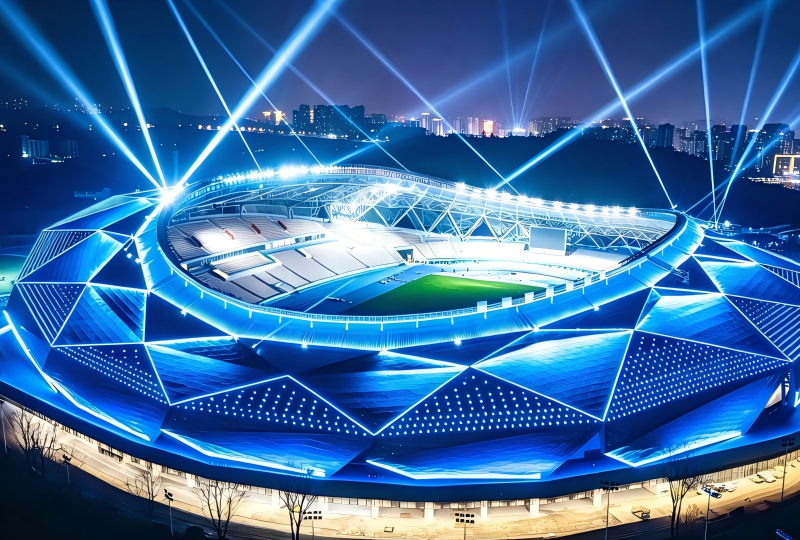

Tier-1 City Olympic Sports Center · 80K People New Year Gala
- Need:
- Stage-to-grandstand laser projection, no audience beam exposure
- Setup:
- 32×TourLite Arena 60W, MA2 timecode sync
- Result:
- Clear beams to rear seats, compliant with global laser safety & fire codes

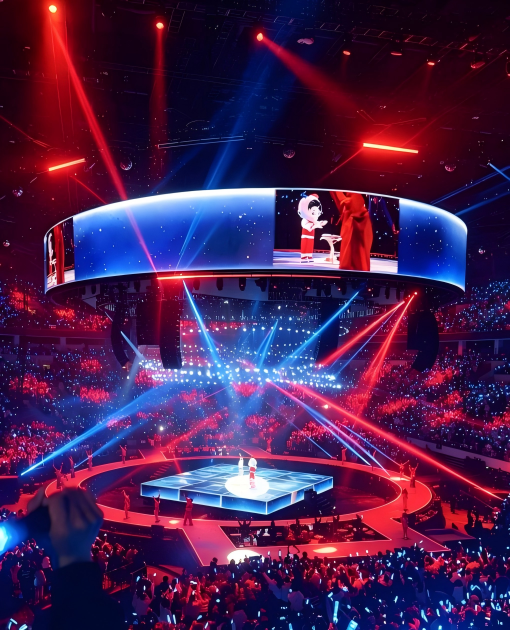

Large Southern Stadium · E-Sports Grand Finals
- Need:
- 24/7 continuous operation for 3 days, multi-team theme switching
- Setup:
- Permanent install, remote file update & on-site tech support
- Result:
- Zero failures, awarded Best Tech Supplier
Download
Professional
Resource Center
A8a 60W waterproof RGB Laser Light（User Manual）
User Manual
Laser Light General Installation Manual
Laser Light Installation Manual
White Paper: Laser Safety & Integration for Large Venues
Laser Safety & Integration for Large Venues
Frequently Asked Questions
- Which certifications are mandatory for lasers in overseas large venues?
Direct answerEquipment must meet the standards that apply in the destination market, typically CE, FDA and IEC, supported by laser class, electrical and EMC test reports.
Certification Requirements by Region
Market Typical requirement Supporting document European Union CE marking LVD and EMC test reports United States FDA laser product requirements Laser class and product report International projects IEC laser safety standards Compliance statement and test data Specific countries Local import or event rules Filings confirmed before shipping Documentation to Request at Order Stage
- Laser class statement for every model shipped
- Electrical safety and EMC test reports
- Waterproof and salt spray reports where outdoor use is planned
- Guidance on local filing requirements before installation begins
Ask DarkTone for the certification pack for your marketConfirm the exact requirements of the destination country at the order stage, because retrofit certification after shipping is slow and expensive.
- What safety measures are required for high-audience-capacity overseas events?
Direct answerHigh-capacity events require certified operators on site, hardware emergency stop and interlocks, physical barriers around restricted zones, and a risk assessment submitted for official review.
Required Safety Measures
Measure Purpose Certified operators on site Qualified control of the show from setup to close Emergency stop and interlock Immediate output cut if a fault or hazard appears Physical barriers Keeps the public out of beam restriction zones Risk assessment submission Meets local event approval requirements Beam height discipline Keeps effects above crowd sight lines Documents to Prepare in Advance
- Show description with beam paths, heights and effect types
- Fixture certificates and test reports for the equipment used
- Operator credentials and on-site responsibility list
- Emergency procedure shared with stadium or festival safety staff
Ask DarkTone for compliance documentation supportFor large crowds, safety approval usually takes longer than the technical build, so start the paperwork before confirming the show design.
- How do I keep multiple laser units synchronised in large venues?
Direct answerUse professional controllers such as the Pangolin FB4 series over a stable network or DMX link, and complete offline pre-programming and preview before the on-site build.
The Three Elements of Stable Sync
Professional controllers
Network playback controllers give every fixture the same frame and timing reference.
Reliable transmission
Switched network with fibre or shielded cabling for long runs and high channel counts.
Offline pre-programming
Programming and preview finished before load-in, so site time goes to alignment only.
Commissioning Sequence for Large Rigs
- Assign fixed addresses and zones to every fixture before leaving the workshop
- Verify the network link end to end, then test each zone before the full rig
- Run the complete show once with all units live before rehearsals begin
- Record final settings so the configuration can be rebuilt quickly at the next venue
Ask DarkTone about large-venue control designMulti-unit sync problems are usually network or addressing issues, so verify signal and addressing before touching the show programming.
- How can after-sales problems be solved for overseas large-venue laser projects?
Direct answerUse remote equipment diagnosis to bridge the time-zone gap, supply matched spare parts in advance, and train local partners so faults can be handled on site.
Support Structure That Works Abroad
Remote diagnosis
Fault codes and live data read over the network, cutting the first-response time to hours.
Spare-part supply
Critical modules shipped with the project so no renewal lead time delays the repair.
Partner training
Local technicians trained on standard service tasks to solve common faults on site.
Agreements to Put in Writing
- Response window for the first technical reply and for remote diagnosis
- List and quantity of recommended spare parts held on site
- Training scope, language and materials for local technicians
- Escalation path when a fault cannot be solved remotely
Ask DarkTone about overseas project supportMost overseas faults are solved remotely when spare parts are already on site, so the spare-parts kit is the fastest reliability upgrade.
Get Your Custom
Venue Solution
We offer tailored services based on your project:
All Venue Projects
Submit CAD for equipment, safety, integration & maintenance plansTechnical Integration
Book joint debugging with MA/Hog/central control systemsCompliance Support
Acquire laser certification documents for large venuesDefine Tone in Dark
