- Drilling and welding are forbidden; all equipment shall be installed without damage.
- Narrow alleys call for subtle lighting rather than exaggerated wide laser beams.
- Light shows shall echo traditional folk customs; aged circuits in old blocks lead to unstable power supply.
- Crowds fill ancient lanes; laser beams must never shine directly on visitors’ faces or cultural relics.
Define Tone in Dark
Cultural Town & Park Laser Solutions
Home / Cultural Town & Park Laser Solutions
Immersive Laser Solutions
for Nightscapes
Weave a thousand years of tales with light, breathing life into the ancient town after dark.
Unique Nightscape Challenges
Ancient Towns and Parks
Unlike urban plazas and modern scenic spots, ancient towns and parks require more restrained lighting effects:
"Laser bracket drilling damaged ancient brick walls; the relics bureau shut down the project."
— Cultural Tourism Planning Director
DarkTone HeritageLaser™ Ancient
Town Solution
Tailored to the features of historic districts, we launch the HeritageLaser™ culturally integrated laser system together with an intangible cultural heritage lighting library, delivering the effect of "lights unseen, scenery soulful".
Ultra-quiet & Low Power
- Two silent cooling modes
- 3W fanless (≤30dB); 5/8W thermostatic fan, activates only at high temp
- Wide Voltage Compatible
- Wide voltage input (90–260V), compatible with fluctuating power supply in old districts
- Low Power Consumption
- Single unit power consumption ≤400W to reduce power distribution load
Zero-Damage Installation System
Custom antique-style brackets complement the aesthetic of ancient architecture.
Concealed ground installation, hidden within flower beds and stone crevices.
Unit weight ≤4.0kg, lightweight enough for one-person transport.
Support & Compliance
Optional Class 4 laser (≤5mW)
suitable for core cultural relic protection areas.
Factory preset safe angle
Beam elevation ≥30°, avoiding pedestrians' line of sight automatically
mechanical safety shutter
auto-shuts after performance to avoid accidental night laser output.
Cultural Fusion Light Effect Library
Built-in intangible cultural heritage templates for Pangolin Pro Heritage Mode
| Theme | Light Effect Samples | Technical Implementation |
|---|---|---|
| Ink Wash Jiangnan | Flowing landscapes, calligraphy brush strokes, lotus ripples | Soft light scanning + slow particle motion |
| Intangible Cultural Heritage Festivals | Shadow puppet silhouettes, paper-cut patterns, lantern arrays | High-contrast graphic projection |
| Poetic Artistic Conception | Display of classic verses (e.g. "The moon sets, crows cry, frost fills the sky") | Dynamic text + background particles |
| Folk Interactive Effects | Wishing river lanterns, blessing koi carps, AR QR code trigger | Audio & mobile phone linkage |
Lightweight Operation & Maintenance
APP one-tap control
venue managers enable remote on/off.
Auto timer schedule
Auto daily timer operation, unattended
Modular fast replacement
10-min core part swap
Annual content updates
Free holiday templates for New Year, Easter, Christmas, etc.
Successful Cases
Ancient Towns
& Parks
& Parks

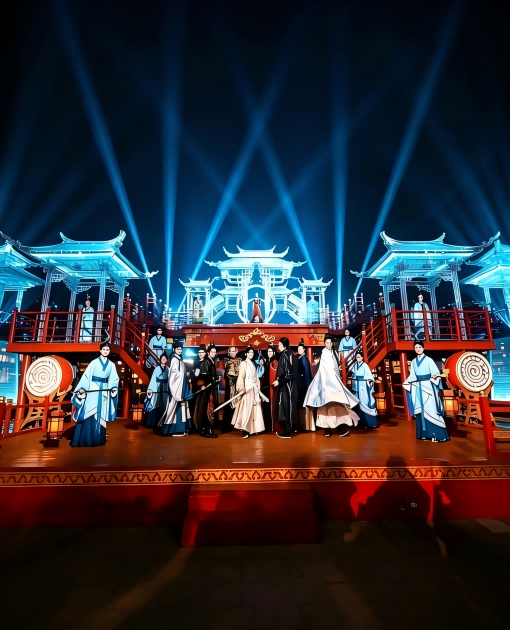

Ancient Style Night Show Project
- Requirements:
- Ancient scenic sites lack laser-equipped immersive night stages, causing low evening attendance.
- Solution:
- Multi-layer Chinese pavilion stage with wide laser beams; red-blue contrasting lighting for traditional Chinese vibes.
- Result:
- Distinctive Chinese-style stage boosts night tours, visitor numbers and secondary consumption.
Mountain Poetry Rock Wall Nightscape Project
- Requirements:
- The park struggles to retain visitors after dark, lacks distinctive night tours and suffers low nighttime consumption.
- Solution:
- A sky laser show based on the whale shark landmark as the closing performance for viral social sharing.
- Results:
- Longer visitor stays, surging night revenue, 300 million online views and a famous city night tourism landmark.
Stage Lighting Support:
AEGIX Series
Laser light for all kinds of outdoor performancesHigh power, ultra-long distance, IP65 outdoor protection. Ideal for city landmarks and large performance venues. Customizable: 20-50W.
NARRA Series
Professional Stage Laser LightHigh power, ultra-long range, IP65 outdoor protection rating, suitable for stage performances and large-scale event venues.

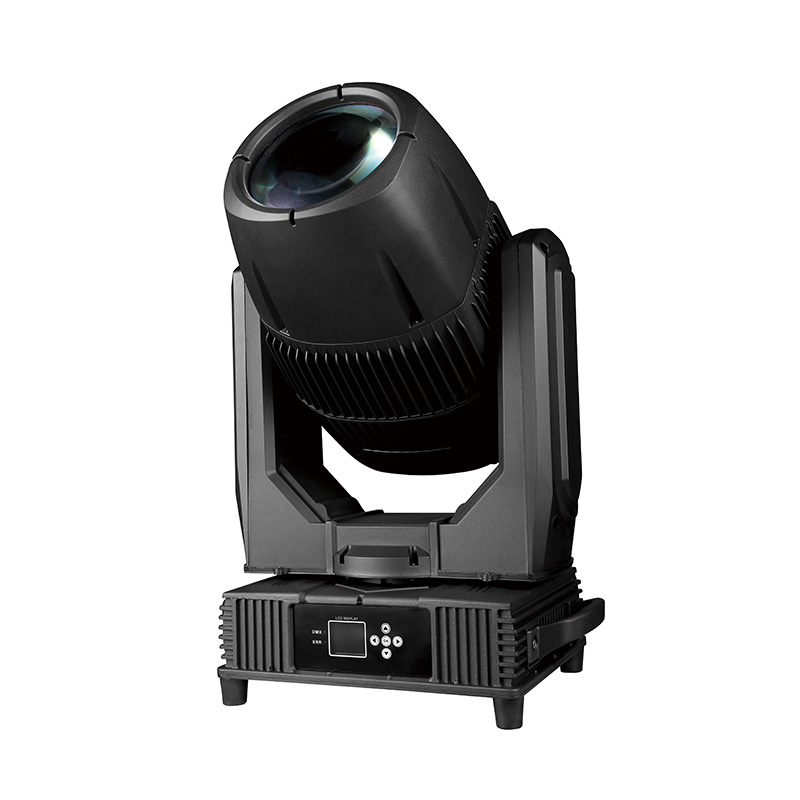

MOTION Series

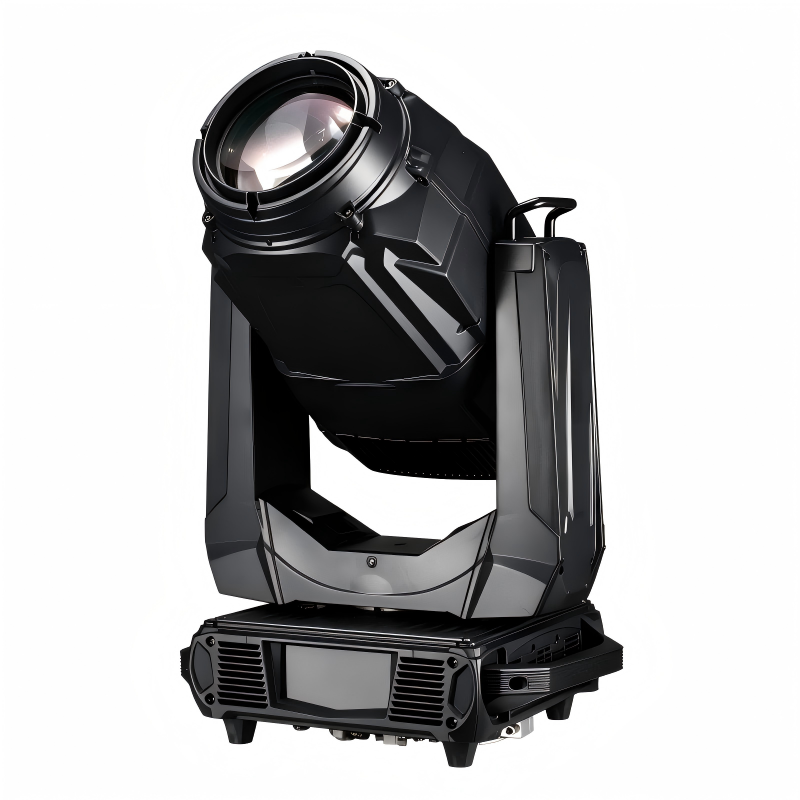

371W Waterproof Beam Moving Head LightThis moving head light fits stages, scenic spots, parks & events. Precision optics, solid aluminum housing, DMX512 control for steady performance.
MOTION Series
Waterproof Moving Profile LightMoving head light for stages, scenic spots and parks. Solid aluminum build, precision optics, DMX512 control.
AETHER Series
High-Power Outdoor Waterproof LaserHigh-power lightweight laser for outdoor events and city landmarks. Fully sealed, dustproof & weatherproof with durable aluminum casing for reliable long-term operation.
Download
Professional
Resource Center
Laser Light General Installation Manual
Laser Light Installation Manual
A1 1-5W RGB Laser Light （User Manual）
User Manual
A10a 10W Waterproof RGB Laser Light（User Manual）
User Manual
Frequently Asked Questions
- How do I select laser power for ancient-town blocks and large theme parks?
Direct answerHigher power is not automatically better. Medium-power units suit short-range atmosphere inside a block, while high-power units are used for long-range river, mountain or landmark projection.
Selection Guide
Application Typical requirement Notes Ancient-town street atmosphere Medium power Short distances, warm ambient light River or lakefront show Medium to high power Long throws over water Mountain or landmark projection High power Very long distance and open air Theme park evening parade route Medium power, distributed Even coverage along the route What to Base the Decision On
- Site survey data: distance, surface, surrounding lighting and weather exposure
- Required effect: ambient wash, graphic projection or long-range beam work
- Two operating modes: a daily ambient mode and a holiday special-effect mode
- Maintenance access for heritage buildings, where works are restricted
Talk to DarkTone about cultural tourism lighting projectsCultural tourism projects usually need both a low-intensity daily mode and a high-impact holiday mode, so the design should support both from the start.
- What compliance and safety rules apply to sky-beam laser shows?
Direct answerEvaluate the airspace first and avoid civil aviation flight paths, then complete local filing. Add hardware emergency stop, keep beams away from visitor zones with physical barriers, and fit interlocks that cut output on fault.
Compliance Steps Before the Show
- Review the airspace above the site and avoid civil aviation routes and approach paths
- Complete the local filing or approval procedure required for upward beams
- Follow the applicable laser show safety standard for beam height and power
- Coordinate with airport or aviation authorities where the site is within a controlled area
Hardware Safety Setup
- Emergency stop reachable by the operator for the whole performance
- Physical barriers keeping the public out of the beam exclusion zone
- Safety interlock that cuts output automatically when a fault is detected
- Weather and wind monitoring with a defined shutdown threshold
Ask DarkTone about sky-beam project complianceSky beams can be seen far beyond the site, so the aviation and filing steps usually decide whether the show can run at all.
- How do I handle rain and fog affecting outdoor theme park laser shows?
Direct answerUse IP65 or higher fixtures with moisture and lightning protection, stop the show in heavy rain, and link a weather signal to automatic standby. Fog increases beam visibility but reduces image sharpness.
How Weather Changes the Show
Condition Effect Response Light rain Slight glow, safe if rated Continue with standard checks Heavy rain Risk to optics and electronics Stop the show, cover fixtures Fog or mist Beams become more visible, images soften Favour beam scenes over detailed graphics High humidity Condensation inside housings Run dehumidified standby and inspect daily Lightning risk Power surge exposure Isolate on warning signal, use surge protection Routine That Keeps the Installation Running
- Connect a weather feed so the system moves to standby before conditions worsen
- Inspect lenses, seals and connectors on a fixed schedule
- Keep protective covers and spare seals on site
- Record each weather shutdown to identify seasonal patterns
Ask DarkTone about weather-resilient park installationsAutomatic standby triggered by a weather signal protects the optics without depending on an operator being present.
- What constraints apply to laser projection on ancient town building facades?
Direct answerHeritage facades need controlled power and illumination duration to avoid heat damage, non-destructive concealed installation, and content that matches the local historical style.
Core Constraints on Heritage Surfaces
- Control laser power and daily illumination duration to prevent heat-related facade damage
- Conceal all equipment without drilling, fixings or changes to the original structure
- Design show content to match the local historical and architectural context
- Complete a heritage-protection assessment before power, projection angle and runtime are fixed
- Plan maintenance that does not require repeated access to protected surfaces
What the Assessment Should Cover
- Surface material and its sensitivity to heat and light
- Permitted installation methods and fixing points agreed with the heritage authority
- Maximum daily exposure time and approved show schedule
- Documentation required before installation is approved
Talk to DarkTone about heritage projection projectsOn heritage projects the assessment usually defines the technical limits, so engage the heritage authority before the show design is finalised.
