- Extreme Environments: sandstorms, downpours, heat over 45°C, high humidity, huge day-night temperature swings
- No standard rigging points: complex setup with custom trusses or ground stands
- Unstable Electricity: Generator-only power, voltage irregularities trigger device rebooting.
- Major safety hazards: unenclosed crowd zones, hard to manage laser beams.
Define Tone in Dark
Global Music Festivals Laser Solutions
Home / Music Festivals Laser Solutions
Built for MUSIC FESTIVALS
Highly Reliable Laser System
Suitable for all festival scenarios from deserts, grasslands and beaches to cities, our laser systems are approvable, all-weather, spectacular and safety-compliant.
THE REAL HURDLES
OUTDOOR FESTIVALS
Unlike fixed venues, music festivals are held at temporary outdoor sites without supporting infrastructure, creating unique operational challenges:
"No outdoor performance hurdle is beyond our solution.."
— Technical Director of a Famous Outdoor Music Festival
DarkTone Festival Tech
Delivery System
We have developed a full-cycle support solution covering assessment through load-out for temporary outdoor venues.
Extreme Adaptive Design
TourLite Outdoor Edition Laser Light, Engineered for Outdoor Wild Environments
IP65 fully sealed dustproof & splashproof construction, certified by CMA accredited laboratories
Anti-corrosion & salt spray resistant coating, long-term corrosion protection for coastal waterfront projects
Wide operating temperature range: -10℃ to +50℃, intelligent low-noise temperature control cooling system
Silicone shock-absorbing optics, ISTA 3A shockproof for frequent touring
100–240V wide voltage, worldwide power compatibility
Outdoor Special Support
Provide Laser Safety Package
01
Personnel Qualifications
LSO & operator certificates
02
Equipment Compliance
IEC60825/FDA/CE/RoHS certs & specs
03
Safety Calculations
NOHD & MPE calculations, beam path and hazard zone drawings
04
Hardware & SOPs
E-stop, beam blockers, emergency procedures
05
Site Control
Barriers, warnings, spotters, airspace plan
Quick Installation System
SafeMount™ Multi-scene Mount
01
- Fits standard 50mm truss clamps
02
- Optional weighted tripod kit, wind resistance Grade 6
03
- Pre-installed 316 stainless safety cable, breaking load >100kg
04
- Scan QR code for AR video tutorials, easy to install and operate
05
- Modular flycase: separate compartments for main unit, bracket, cables & tools, tidy setup
Scan the QR code to start the AR installation tutorial
Localized & On-site Support
Rapid On-site Repair
Arrive within 48 hours in peak season, spare parts replaced same day
Dedicated On-site Service
Senior engineers stay full-time to ensure smooth performances
Outdoor Compliance Assistance
Airspace & venue coordination, outdoor environmental support
OUTDOOR CORE HARDWARE
Choose DarkTone
Top-Grade Outdoor Core Hardware Creates Unmatched music Festival Value
Features | Festival Benefits |
|---|---|
| ≤ 7.5kg lightweight, easy single-person rigging | Lower labor costs |
| 40W high-bright RGB, visible day & night | For large crowd venues |
| Dual ILDA & Art-Net, works with Pangolin, MA, Hog | Compatible with pro stage systems |
| Pangolin Pro Festival Mode: auto scan, strobe sync, safety shutter | Stable & safe performances |
Global
Music Festival
Success Cases
Success Cases

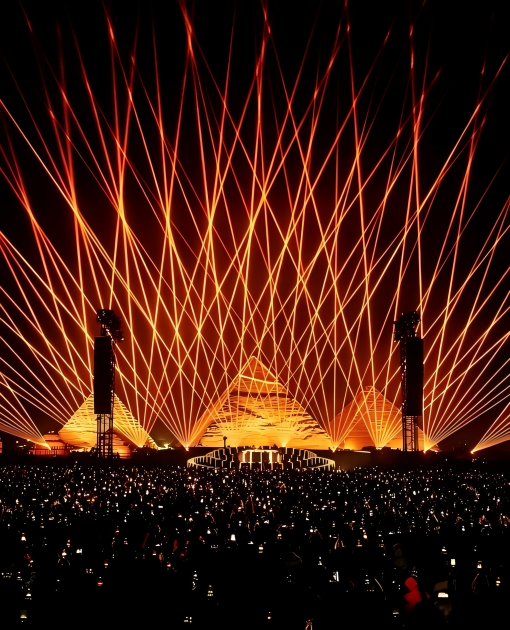

Desert Electronic Music Festival in Egypt
- Environment:
- Daytime temperature up to 50°C, sandstorm alert, no local supporting facilities
- Solution:
- Install dust-proof filter screens, adopt enhanced heat dissipation kits, and implement generator voltage stabilization system
- Result:
- Clear and stable laser graphics, turning the show into viral content across social media
Top-Tier Desert Music Festival Worldwide, CA, USA
- Challenge:
- Laser projection required to exceed 300 meters, while ensuring zero exposure to audience areas.
- Solution:
- 32 FDA-certified TourLite Outdoor Edition Lasers + Pangolin Pro (Desert & Festival Modes)
- Result:
- Zero failures, clear beams in daylight, full stage coverage, two weekends of smooth performances
Download
Get Tech
Docs Now
US FDA
US FDA certification is mandatory radiation safety clearance for lasers imported and sold in the US.
A7 20-50w Waterproof RGB Laser Light （User Manual）
User Manual
Laser Light General Installation Manual
Laser Light Installation Manual
Frequently Asked Questions
- What IP rating should laser units have for open-air music festivals?Choose IP65 or higher for open-air festivals to resist rain, dust and humidity. Add protective covers for sandstorm or heavy rain scenarios and inspect lenses regularly during long events.
Direct answerChoose IP65 or higher. That rating resists rain, dust and humidity, and additional covers can be added for sandstorm or heavy-rain conditions.
Rating Guidance
Condition Recommendation Covered stage, dry climate IP54 acceptable, daily checks recommended Open stage with rain risk IP65 or higher Coastal or high-humidity site IP65 plus anti-corrosion coating Sandstorm or dusty region IP65 with protective covers during standby Maintenance During Long Events
- Inspect lenses and vents at each day of a multi-day festival
- Keep spare covers and desiccant packs available on site
- Check connectors and cable entries after every rain period
- Record output and fault history across the event to spot early wear
Ask DarkTone which outdoor models suit your siteFestival sites combine rain, dust and vibration, so the IP rating should be chosen for the worst expected condition, not the average one.
- What safety rules apply to audience-scanning laser effects at festivals?Audience scanning requires an NOHD safety calculation before the show, hardware emergency stop and interlock, beams kept above the crowd zone, and strict compliance with local audience-scanning limits.
Direct answerAudience scanning requires a safety calculation before the show, hardware emergency stop and interlock, beams kept above the crowd zone, and strict compliance with local limits.
Required Controls
- Complete a safety distance calculation before the effect is designed
- Fit hardware emergency stop and safety interlock that cut output immediately
- Keep beam height above the standing crowd zone except for approved scanning effects
- Follow the local limits for audience scanning operation without exception
- Brief the operator on the abort condition and the trigger for stopping the effect
Why Audience Scanning Needs Extra Care
- Crowds move unpredictably, so pre-set distances can be invalidated during the show
- Camera and phone use in the crowd changes exposure conditions
- Scanning effects must be limited in power and speed, not just in direction
- Documentation should show the calculation behind the effect settings
Ask DarkTone about safe audience scanning configurationKeep the calculation, the effect settings and the abort procedure in one document so the operator and the safety team work from the same reference.
- How do I select laser power for music festivals of different sizes?Medium-power lasers suit small festival stages, while high-power RGB units are used for large outdoor stadium events. The final figure depends on site survey, ambient light and the required visual effect.
Direct answerMedium-power lasers suit small festival stages. High-power RGB units are used for large outdoor stadium events, and the final figure depends on the site survey, ambient light and effect requirements.
Selection Guide by Event Scale
Event scale Typical requirement Notes Small open-air stage Low to medium power Limited throw distance and audience area Mid-size festival stage Medium power Balances visibility with safety zones Large outdoor festival High power RGB Long throws and heavy ambient light Stadium-scale production High power with multiple units Coverage by distribution rather than one fixture What the Site Survey Decides
- Throw distance from the rig to the audience and backdrop
- Ambient light level at the planned show time
- Weather exposure, which sets the required IP rating
- Audience distance, which sets the permitted output and beam height
Send DarkTone your festival plan for a power recommendationPower is confirmed after the site survey, because the same fixture behaves very differently on a small stage and in an open field.
- Which control protocols should festival laser systems use?Festival rigs normally use ILDA for graphic playback and DMX512 or Art-Net for console integration, with redundant control links to prevent show interruption and timecode sync to audio.
Direct answerUse ILDA for graphic playback, DMX512 or Art-Net for console integration, and add redundant control links so a single failure cannot stop the show. Sync effects to audio with timecode.
Protocol Roles on a Festival Rig
Protocol Function ILDA Graphic and animation playback from the laser software DMX512 Integration with the festival lighting console Art-Net Network control across stages and distant fixture positions Timecode Keeps laser cues aligned with the audio playback Redundancy Planning
- Run a second control path over a different cable route or network segment
- Keep a standalone show file on the laser controller in case the console fails
- Test the switchover procedure during rehearsal, not during the show
- Document the fallback look so any operator can trigger it
Ask DarkTone about festival control and redundancy designA redundant control path is the cheapest insurance against a show-stopping failure at an outdoor festival.
Get Your Exclusive
Festival Solution
We offer tailored technical services based on your project progress:
Pre-Planning
Share venue info for site & equipment proposalsProcurement & Setup
Get TourLite Outdoor bundle list & delivery scheduleOn-Site Execution
Book on-site technicians or remote emergency supportDefine Tone in Dark
