Darktone is not a trading company — we are a full-cycle laser lights manufacturer with in-house R&D, precision optics lab, galvanometer calibration station, and production lines under one roof. Since 2010, we have served over 50 countries as a trusted stage laser lights supplier and beam lasers OEM partner.
Our lasers are powered by original Nichia (Japan) laser diodes and high-speed scanners (30K–50K pps), delivering vivid RGB full-color output for beam, animation, text, and logo projection. Every unit undergoes 24-hour aging test and optical axis calibration before shipping.
We hold FDA/CDRH (Class IV laser safety), CE, RoHS, and FCC certifications — ensuring compliance across EU, US, and global markets.
- 16+ YearsDedicated to professional laser lighting manufacturing and innovation
- 3W – 300WRGB laser power range for club, stage, outdoor, and architectural applications
- IP54–IP65Waterproof protection with salt spray and high-low temperature testing
- 3 ProtocolsILDA + DMX512 + Art-Net control, Pangolin BEYOND & FB4 compatible
Laser lights products
- Product Screening
- Scenarios
- Touring Performances
- Bars
- Concerts
- Music Festivals
- Large Venues
- Architectural Lighting
- Parties
- Themed Towns
- Light and Water Shows
- Theme Parks
- Banquet Halls
- Live Streaming Studios
- TV Stations
- Science Museums
- Science Museums
- Light Source Power
- 1W
- 2W
- 3W
- 4W
- 5W
- 6W
- 8W
- 10W
- 12W
- 15W
- 20W
- 25W
- 30W
- 40W
- 50W
- 60W
- 80W
- 100W
- 120W
- 150W
- 200W
- 300W
- Rated Power
- 96W
- 120W
- 210W
- 250W
- 310W
- 370W
- 450W
- 670W
- 810W
- 910W
- 1060W
- 1100W
- 1200W
- 1500W
- 2600W
- 3700W
- 150W
- IP Rating
- IP54
- IP55
- IP65
- Weight
- 5kg
- 5.5kg
- 6.5kg
- 7kg
- 8.5kg
- 14.5kg
- 16.5kg
- 18.5kg
- 26kg
- 36kg
- 73kg
- 123kg
- 200kg
- Housing Color
- Black
- Silver
- White
- Dark Gray
17 results
ViewShowcase

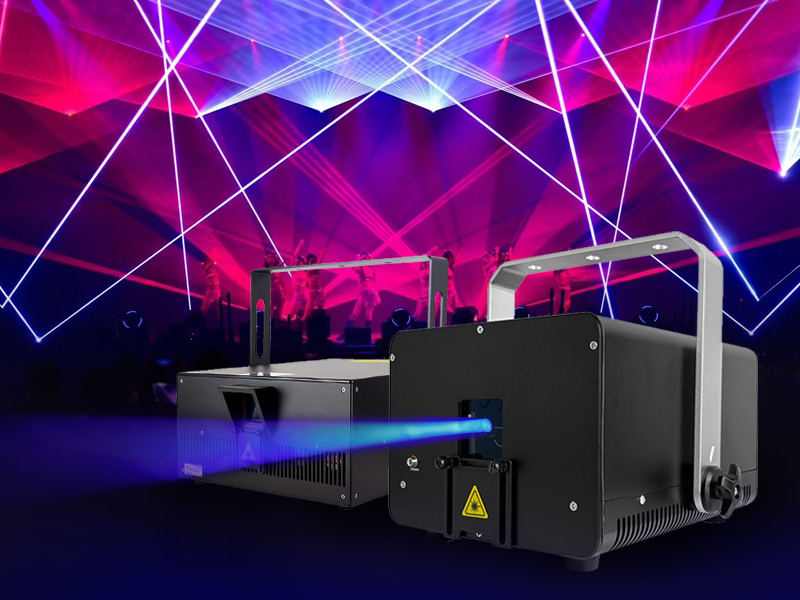

10W Waterproof RGB Laser Light with Nichia source, 30K scanner and multi control modes. ideal for outdoor stages and events.
60W waterproof RGB Laser Light for outdoor festivals & large venues. Supports ILDA/Sound/Auto/DMX512/Master-slave
40w Waterproof RGB Laser Light, for outdoor festivals & large events. Supports DMX512/ILDA/ Auto/Sound/Master-Slave
10W RGB Animation Laser, for stages, bars, nightclubs & parties. Supports DMX512/ILDA/APP/ Auto/Sound/Master-Slave
10W RGB Laser, indoor use for bars, KTV, nightclubs & parties. Supports DMX512 / ILDA / APP/ Auto / Sound / Master-Slave
30W Waterproof RGB Laser for Outdoor Events. Supports ILDA, Sound , Auto, DMX512 & Master-slave modes.
20W RGB animation laser light for indoor stages, tours, bars and parties， Supports ILDA/Sound /Auto/DMX512/Master-slave
20W Waterproof laser lights for music festivals,touring shows and bars.Supports DMX512/ILDA/ Auto/ APP/Sound/Master-Slave
Mini 6w RGB animation laser light for bars, KTV, nightclubs & parties. Supports DMX512/ILDA/ Auto/Sound/Master-Slave
Mini 4W RGB Animation Laser Light for indoor venues. Supports DMX512/ILDA/ Auto/Sound/Master-Slave
3W RGB Laser Light, compact indoor unit for bars, nightclubs & parties. Supports DMX512/ILDA/APP/ Auto/Sound/Master-Slave
Compact IP65 RGB Firefly Laser, multi‑control modes, long lifespan, ideal for stages, parks & outdoors.
60W Waterproof RGB Animation Laser, outdoor festivals & large venues. ILDA, sound, auto, DMX512, master‑slave supported
120W Waterproof RGB Laser, outdoor concerts, venues & landmark shows. ILDA, sound, auto, DMX, master‑slave supported.
300W Waterproof RGB Laser, outdoor concerts, venues & city landmarks. ILDA, sound, auto, DMX512, master‑slave supported.
Beyond: Professional laser show design software, full lighting protocols, seamless multimedia laser integration.
FB4, Pangolin’s network laser controller, acts as a multimedia server for laser‑show light and graphic control
Technical Specifications
& Engineering Excellence
for Laser Lights
Nichia Laser Source
We exclusively use original Japanese Nichia laser diodes — the industry gold standard for brightness, color purity, and lifespan. Laser module life: 10,000–20,000 hours.
- 638nm Red / 525nm Green / 450nm Blue wavelengths
- ±0.01mm optical path alignment precision
- Unique double-layer sealed optical path design
High-Speed Scanners (30K–50K pps)
Galvanometer scanners with scan angles up to 60°. Higher scan speed means smoother animations.
- 30K pps standard (40K / 45K / 50K upgrade available)
- 100K analog / TTL modulation
- Galvo calibration with 24-hour burn-in test
Triple-Protocol Control System
Every laser supports ILDA (Pangolin), DMX512, and Art-Net protocols for maximum flexibility.
- ILDA: animation, text, logo via Pangolin BEYOND
- DMX512: 8–16 channel beam/color/strobe control
- Sound Active / Auto / Master-Slave modes
IP65 Fully Sealed Waterproof Design
Cast aluminum housing with fully sealed waterproof potting for outdoor reliability.
- IP54 indoor / IP55 semi-outdoor / IP65 full outdoor
- Salt spray corrosion test > 72 hours
- Operating temp: -20°C to +45°C
Seven-Layer Quality Control
Every unit: incoming inspection → in-process QC → 24-hour aging → optical calibration → waterproof test → functionality check → final packing.
- Laser power verification with calibrated meter
- Scan linearity and angle accuracy test
- Color balance (RGB) factory pre-calibration
Pangolin Official Dealer & Pre-Install
Official Pangolin authorized dealer. FB4 pre-installed in laser projectors, ready for BEYOND.
- FB4 integrated / external options
- BEYOND v5+ compatibility
- Art-Net / sACN / MA-Net ready
Laser Light
Parameter
Quick Reference
| Parameter | Indoor Series | Outdoor Waterproof Series | High-Power Series |
|---|---|---|---|
| Laser Power | 3W – 20W RGB | 10W – 60W RGB | 60W – 300W RGB |
| Laser Source | Nichia (Japan) | Nichia (Japan) | Nichia (Japan) |
| Scanner Speed | 30K pps | 30K – 45K pps | 30K – 50K pps |
| IP Rating | IP54 | IP65 | IP65 |
| Control | ILDA/DMX/Sound/Auto | ILDA/DMX/Sound/Auto | ILDA/DMX/Art-Net |
| Modulation | 100K Analog + TTL | 100K Analog + TTL | 100K Analog + TTL |
| Certifications | FDA / CE / RoHS | FDA / CE / RoHS / FCC | FDA / CE / RoHS / FCC |
| Laser Lifespan | 10,000 – 20,000 H | 10,000 – 20,000 H | 10,000 – 20,000 H |
| Pangolin FB4 | Optional | Optional / Pre-installed | Pre-installed |
| Scan Angle | Max 60° | Max 60° | Max 60° |
| Housing | Cast Aluminum | Cast Aluminum + Sealed | Cast Aluminum + Sealed |
CompleteLaser Lights
ProductRange
Click a category to see full product details on our website.
3W–20W, IP54
Club Laser Light
Compact RGB club laser lights with DMX512, sound activation. Ideal for nightclubs, DJ booths, KTV, bars.
10W-300W,IP65
Outdoor Shows Laser Light
IP65 waterproof laser projectors for outdoor concerts, festivals, building projection.
3W–20W, IP54
Beam Laser Light
High-power RGB beam stage lasers with tight beam angles for aerial effects.
3W–60W, IP54–IP65

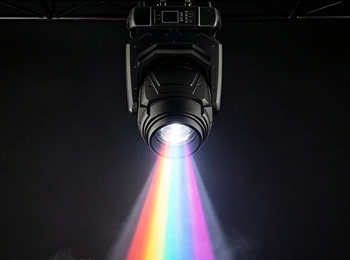

Moving Head Laser Light
DMX moving head laser projectors, 540° pan / 270° tilt for tours and TV.
10W–30W, IP65
Firefly Laser Light
RGB firefly effect lasers for garden, holiday, landscape decoration.
20W–300W, IP65
Architectural Laser
Building facade projection systems for architectural illumination.
Manufacturing Excellence
In-House Laser Lights Production
from End to End
Unlike many laser light suppliers who outsource, Darktone controls every step in our own smart factory.
Precision Optical Engineering
Optics lab handles laser diode alignment, beam combiner assembly, galvo calibration at micron-level precision.
- Nichia diode qualification testing
- RGB beam combiner alignment
- Galvo linearity calibration

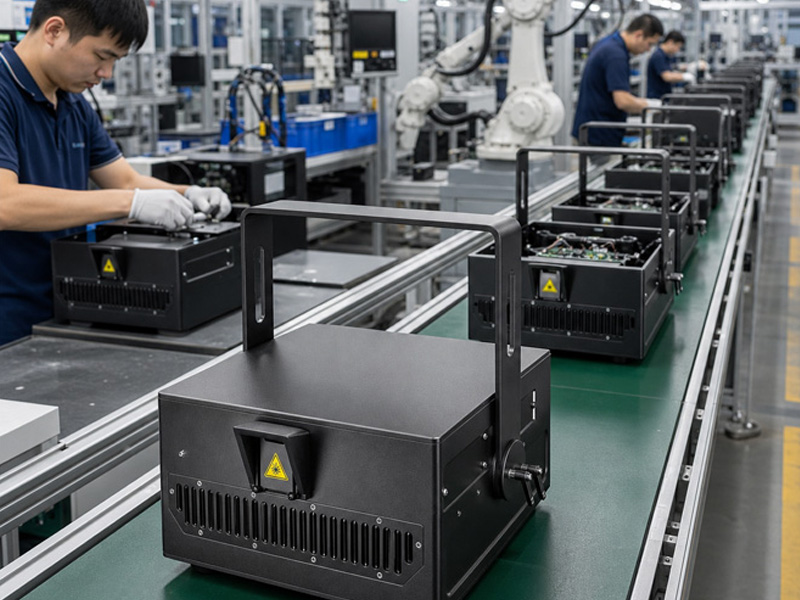

Production & Assembly
SMT lines, precision machining, and manual assembly for cast aluminum housing, optical modules, PCBs.
- Cast aluminum die-casting
- IP65 potting & sealing
- SMT PCB assembly
Seven-Layer QC:
Incoming inspection → in-process check → 24h aging → optical calibration → waterproof test → functionality → final packing.
Custom Laser Lights Solutions
Tailored for
Every Business Model
As a factory-direct laser lights manufacturer, Darktone provides flexible partnership models.
| 01 | OEM/ODM for Lighting Brands | Full-cycle OEM: custom PCB, firmware, housing, branding. Low MOQ. |
| 02 | Private Label /White Label | Sell under your own brand. NDA protected, direct shipping. |
| 03 | System Integration Solutions | DMx512, ILDA, Art-Net: full documentation and remote commissioning. |
| 04 | Distributor / Wholesale Program | Exclusive territory, tiered pricing, stock support, joint marketing. |
| 05 | Rental Fleet Solutions | Flight-case ready, modular maintenance, IP65 outdoor, spare parts support. |
| 06 | Custom Project Development | Bespoke systems for landmarks, themed attractions, permanent installs. |
Global Certifications
& Industry Compliance
LASER LIGHTS PRODUCT
KNOWLEDGE
Practical resources for choosing, specifying and deploying professional laser lighting systems.
SELECTION
Complete Guide to Choosing a Stage Laser Light
Start with application, output, scanner speed, control and environmental requirements.
Read selection guide
FIXTURE TYPE
Beam Laser vs Moving Head Laser Comparison
Understand the difference between fixed beam impact and dynamic moving laser coverage.
Compare fixture types
ENVIRONMENT
IP Ratings Explained for Outdoor Laser Equipment
Use indoor, semi-outdoor and outdoor conditions to guide enclosure selection.
SOURCING
OEM/ODM Laser Sourcing Guide for Brands
Review configuration, branding, documentation and delivery questions before sampling.
Plan your sourcing brief
CONTROL
ILDA vs DMX512 vs Art-Net Explained
Match show programming, fixture control and network distribution to your workflow.
Review control options
SAFETY
Laser Safety Regulations for Professional Events
Build safety review, audience exposure control and local compliance into the project plan.
Review safety topics
Frequently Asked Questions
About Laser Lights
What certifications do Darktone laser lights have?
FDA/CDRH (US), CE (EU), RoHS, FCC. Certification docs with every shipment.
What is the difference between ILDA and DMX512?
ILDA = full animation via Pangolin. DMX512 = fixture parameter control. Darktone supports both.
What IP rating for outdoor laser shows?
IP65 recommended. Darktone outdoor series: IP65, double-layer sealed, >72h salt spray tested.
Can I use Darktone lasers with Pangolin?
Yes — official Pangolin dealer. Compatible with BEYOND, QuickShow, LD2000. Pre-installed FB4 available.
Laser module lifespan?
10,000–20,000 hours with Nichia (Japan) diodes.
MOQ for OEM/ODM?
1–5 units for sample testing; 10–50 units for custom OEM batches.
