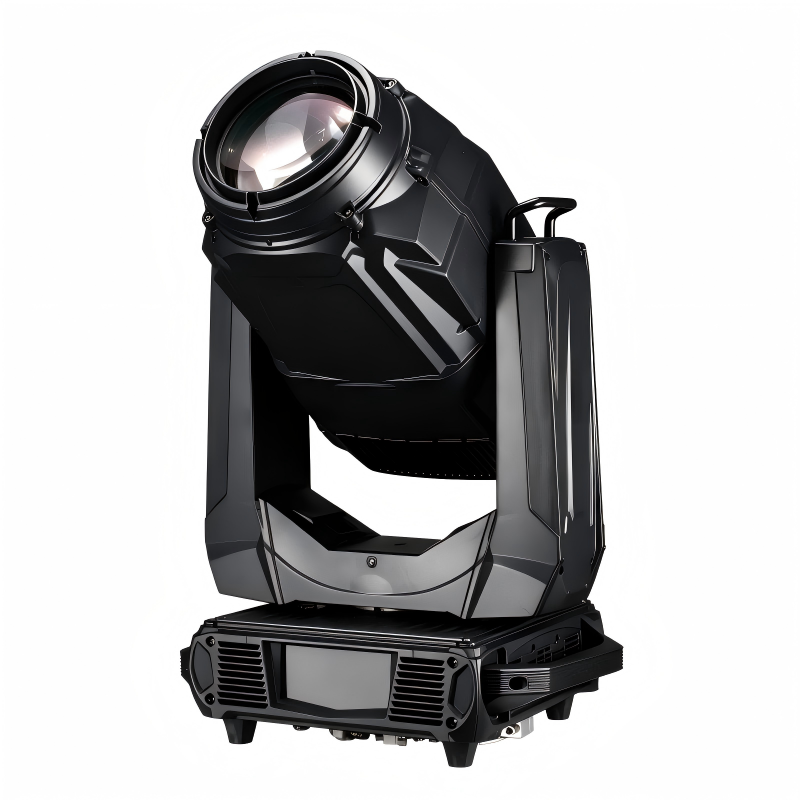

1500W Waterproof Moving Head Profile Light | CMY CTO 4-Blade Cutter | DMX512 | 5°-50° Zoom
| Share | |
|---|---|
| Categories | Outdoor Beam Moving Head Light |
| Brand | DARKTONE Stage Lighting Equipment Manufacturer |
| Protection Grade | IP65 Waterproof |
| Color System | CMY+CTO Mixing |
| Framing System | 4 Cutting Shutters |
| Zoom Range | 5°-50° Electronic Zoom |
| Gobo | Dual Gobo Wheels |
| Scanning | 16bit Pan & Tilt |
| Light Source | 1500W LED Module |
| Control Protocol | DMX512 & RDM |
Detail Information
1500W Waterproof Moving Head Profile Light -Product Overview
1 Electrical Parameters
Input Voltage: AC100-240V, 50/60Hz
Total Power: 1650W
2 Light Source
Type: 1500W White LED Module
Average Lifespan: ＞20,000 hours
3 Color System
1 Color Wheel: 8 colors + open, bi-directional rainbow effect
CMY Linear Mixing + CTO Tuning (6000K-2800K)
4 Gobo System
Static Gobo Wheel: 6 metal gobos + dynamic texture + open, gobo shake
Rotating Gobo Wheel: 7 pluggable rotating gobos + open, shake & positioning
5 Effects
Zoom & Focus: 5°-50° electronic zoom, focus range 2m to infinity
Framing System: 4 independent shutters, 100° rotatable
Iris: 5%-100% linear adjustment
Prism: Bi-directional rotating 8-facet prism
Frost: Independent frost filter
Dimming & Strobe: 0-100% linear dimming, high-speed strobe
6 Display & Control
LCD Screen, Chinese/English switchable
DMX Channels: 39 standard / 34 simplified
Signal: USITT DMX512, 3-pin XLR I/O, RDM supported
Firmware upgrade via DMX; Intelligent temperature-controlled cooling
7 Movement
Pan: 540° (16-bit) | Tilt: 245° (16-bit)
Electromagnetic auto reset
Mount: Integrated folding clamp
8 Dimension, Weight & Rating
Size: 412×330×754mm
Net Weight: 31kg
IP Rating: IP65
Why Choose Our Professional 1500W Waterproof Moving Head Profile Light
1、IP65 Outdoor Waterproof Design
Full IP65 dustproof and waterproof structure, stable operation for outdoor concerts, scenic spots and open-air events.
2、Rich Professional Light Effects
CMY+CTO color mixing, 4 independent framing shutters, dual gobo wheels and multi-effect filters for diverse creative lighting output.
3、Stable Precise Movement System
540° pan & 245° tilt with 16-bit high resolution, auto electromagnetic reset and intelligent temperature control for long-hour reliable work.
FAQ-1500W Waterproof Moving Head Profile Light
Is this light suitable for outdoor use?
Yes, it features IP65 waterproof and dustproof rating, which can work stably in open-air concerts, scenic lighting and outdoor events.
Does it support DMX control and firmware upgrade?
Absolutely. It complies with USITT DMX512 & RDM protocol, and you can upgrade the fixture’s firmware via the DMX port.
What’s the zoom range and beam shaping function?
It supports 5°-50° 10x electronic linear zoom, equipped with 4 independent rotatable framing shutters to freely cut and shape light beams.
