Outdoor Waterproof Laser Lights Outline a Xinjiang Group HQ Facade
DarkTone Laser has supplied 38 outdoor waterproof laser light units — 18 × 60W and 20 × 40W — for the facade lighting of a group headquarters building in Xinjiang, China. Installation is complete and the system is in commissioning, with the client's chairman having reviewed the first test sequences on site and given unanimously positive feedback.
The scope covers the tower body, the crown line and the entrance zone, with the fixture mix matched to the throw distance on each part of the elevation.
Why is outdoor waterproof laser light chosen for a building facade?

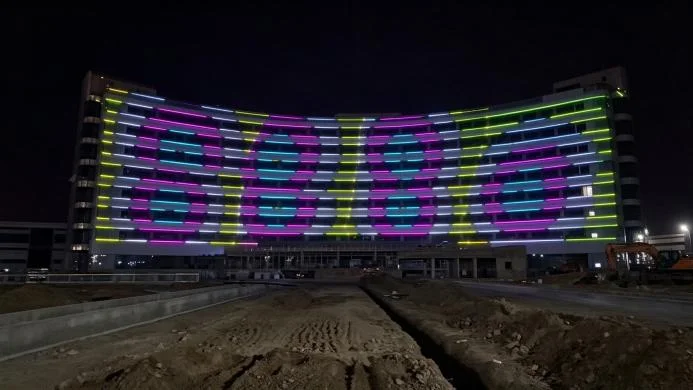

On a headquarters tower the outline reads before the surface does. A building facade laser light scheme draws it from a distance: the fixture stays off the wall, throws a narrow, high-contrast line along cornices and vertical edges, and leaves the curtain wall free of brackets, drilled anchors and daytime clutter. At night the effect reads from the approach road — one continuous line around the crown rather than a wash of light across the wall.
What was specified for this Xinjiang building facade laser lighting project?
The installation runs 18 units of the 60W class and 20 of the 40W class, in outdoor waterproof housings specified for permanent exterior mounting. Throw distances on a tall building are never uniform, so output class follows distance instead of forcing one fixture into every position. Colour consistency across a run that long is judged on the wall itself, not on a data sheet.
How are the 60W and 40W units divided on the facade?
The higher-output units carry the long throws — the upper body and crown, where a line must stay crisp across the widest span. The 40W units cover shorter runs, lower volumes and the entrance zone. Both share one control layer.
How does the system handle Xinjiang's dust, wind and cold?

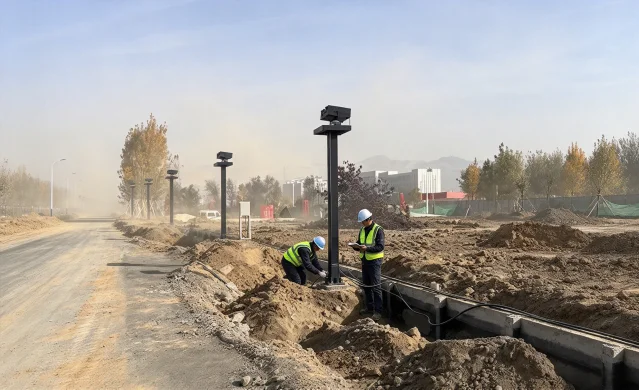

Exterior laser work here is a climate test as much as a lighting brief: sand-laden spring wind, high summer surface temperatures, deep winter cold and wind loading at height. The specification leans on sealed housings, protected lens windows, a thermal path that is validated rather than assumed, and hardware serviceable without removing the optical head. Mounting and alignment are done in daylight; the optical checks are repeated after dark, when the beams are visible.
Where does park outdoor laser lighting make the biggest difference?
A corporate campus rarely ends at the building line. Gateways, internal axes and the park frontage need to read as one family, and park outdoor laser lighting ties them together at far lower cost than floodlighting every surface. Zoning by area, with a weekday schedule and an event schedule, keeps the scheme extendable without re-cutting the facade.

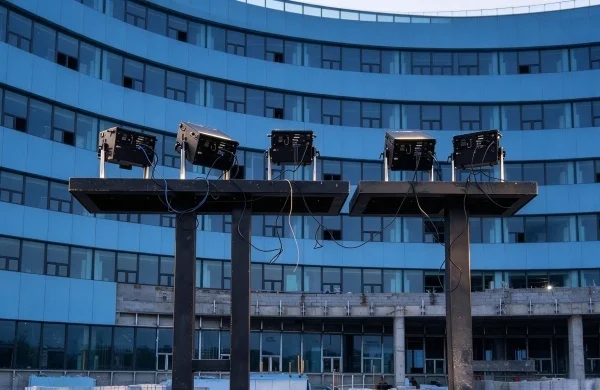

What is being checked during commissioning?
Four things: beam geometry and line continuity on every edge, brightness balance against ambient levels, zone mapping and scene timing, and the safety layer — beam termination, no stray upward light, and a fail-safe state the facilities team can operate. As-built records are compiled alongside the tests. Final acceptance is not yet signed.
Who supplied the laser systems?
The fixtures come from DarkTone Laser, a Guangzhou manufacturer of stage laser lights and stage lighting that also builds for architectural and outdoor installation. It is a Pangolin authorised dealer with FB4 pre-installed, and handles fixture engineering, programming and commissioning with its own team.
Specifications sit on the 60W outdoor laser light and 40W outdoor laser light pages; application notes under architectural and outdoor laser solutions, with past exterior work in project cases. For a throw-distance review, use the contact page.
Common questions about exterior laser installation
Do outdoor waterproof laser lights need a dedicated power and control cabinet?
Yes. Feed the system from a dedicated circuit with its own breaker, surge protection and a lockable cabinet, and keep lighting and data runs on separate schedules so a control fault never takes the lighting offline.
What should be checked before installing architectural outline laser lights on a high-rise facade?
Confirm mounting positions and throw distances on site, verify that every beam terminates on the building, and coordinate with aviation obstruction lighting. Roof access and upward stray light need agreement before the first power-on.
How often should outdoor laser fixtures be serviced in dusty or cold regions?
In dusty regions, clean lens windows more often than in temperate cities and check seals at the same visit. Before winter, verify thermal management and re-check alignment after the first large temperature swing.
Can 40W and 60W outdoor laser lights share one control system and schedule?
Yes. Mixed 60W and 40W systems commonly share one network and schedule, provided each unit keeps its own addressing, brightness calibration and safety settings.
